Shelter and bus shelter YOU HAVE A PROJECT ?

The lighting need for a bus stop is limited in time, only two to four hours a night are enough. Indeed, it is not necessary to illuminate all night, but only when the user is present (for example two hours in the morning and two hours in the evening).

Very often far from the electricity networks, the stop for travelers is a natural application for solar autonomous lighting.

Recommended level of illumination: 10 to 20 lux average depending on the light environment present.

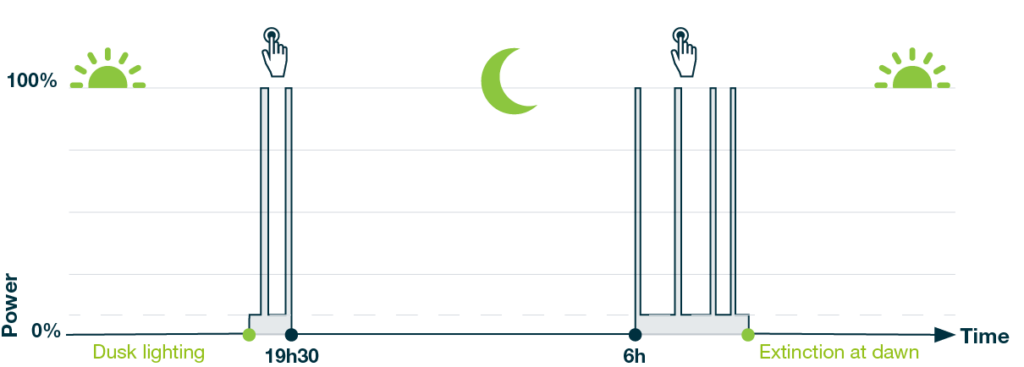

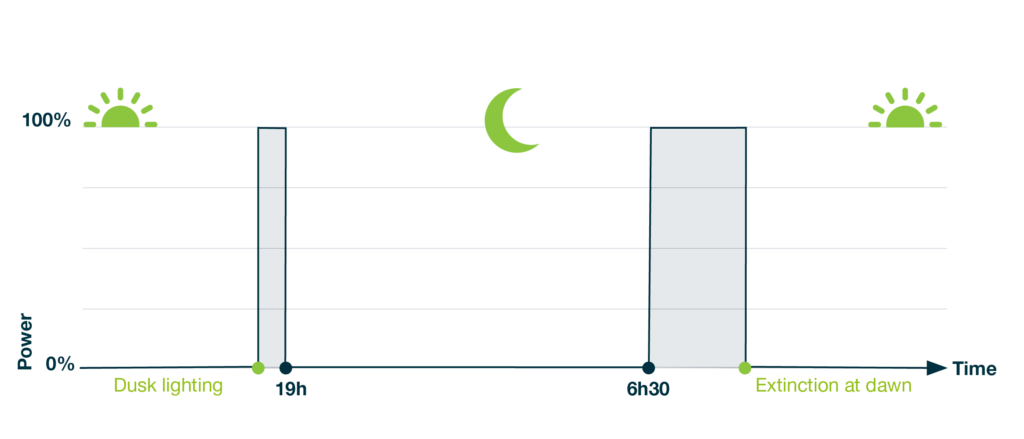

RECOMMENDED OPERATING MODE:

In order to light only when it is necessary, Novea Energies offers you different opertaing modes adapted to bus shelters:

  • Standing on clock with break or standby.
  • Presence detection with dimming mode. Remote detection. Be careful not to detect each passage of the vehicle.
  • Push button with standby mode.

LIGHTING POWER:

The table below shows the required lighting power according to the objective of the level of illumination to be attained and according to the surface indicated.

It will remain to specify the operating time per night to validate the power of the solar panel and the capacity of the battery.

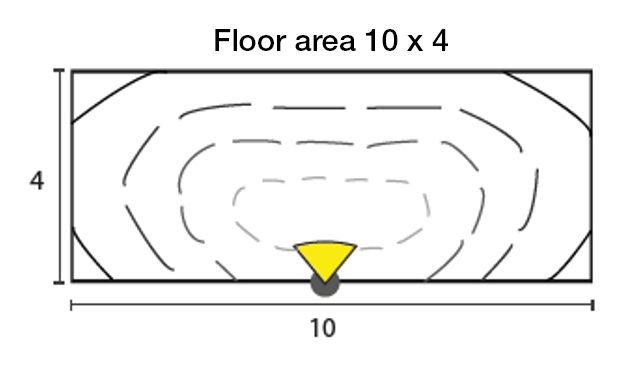

floor area drawing

Products related to this type of project

Combi Top 1

  • Solar panel power: minimum 60 Wp (360° adjustable)
  • Light height: 3,5 to 6 m
  • Power consumption: 5 to 20 W
  • Luminous flux leaving: 700 to 3 600 lumens
View the product

Combi Top 2

  • Solar panel power: 150 Wp (360° adjustable)
  • Light height: 4 to 6 m
  • Power consumption: 10 to 40W
  • Luminous flux leaving: 1 400 to 7 200 lumens
View the product

Combi Top 3

  • Solar panel power: 175 Wp (360° adjustable)
  • Light height: 4 to 8 m
  • Power consumption: 20 to 40 W
  • Luminous flux leaving: 2 800 to 7 200 lumens
View the product

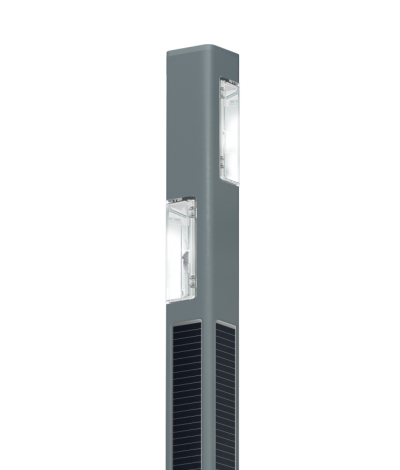

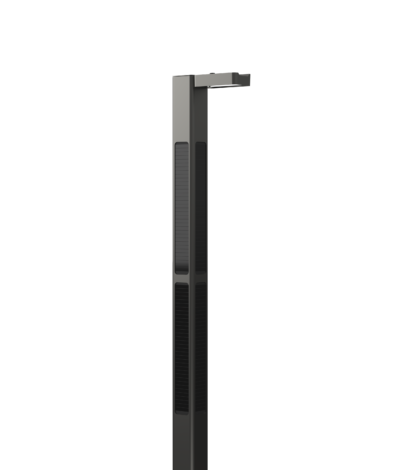

AKKOR 2.6

  • Solar panel power: 200 Wc
  • Light height: 6 m
  • Power consumption: < 25 W
  • Luminous flux leaving: 1 500 to 3 000 lumens
View the product

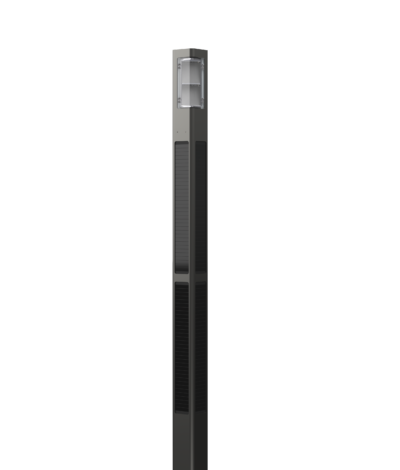

AKKOR TEKK 2.6

  • Solar panel power: 200 Wc
  • Light height: 6 m
  • Power consumption: < 25 W (16 LED) / ⩾ 25 W (32 LED)
  • Luminous flux leaving: 1 500 to 5 250 lumens
View the product
