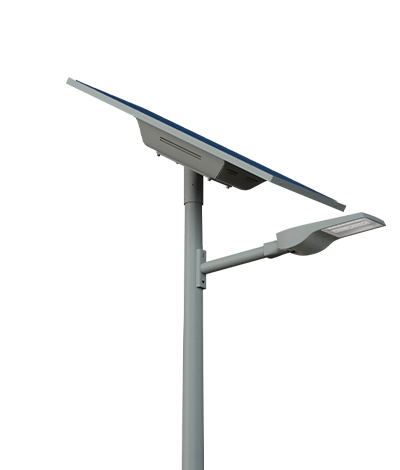

Combi Top 3

Technical characteristics

Solar panel power 185 Wp (360° adjustable)
Battery technology Endurance +, Lithium Iron phosphate
Location In a box in aluminum foundry, behind the solar panel
Battery capacity 345 to 1 064 Wh
Operating temperature -20 °C to +60 °C
Light height 4 to 8 m
Power consumption 10 to 40 W
Luminous flux leaving 1 500 to 4 800 lumens
Light efficiency 160 lumens/W (3 000 K) / 180 lumens/W (4 000 K)
Color temperature 3 000 K / 4 000 K
Mast Cylindroconic galvanized steel powder coated, without door, calculated for all wind zones according to EN40 standard
Service life Luminaire : 100 000 h at 80 % of initial flux
Solar panel: 25 years at 80 % of initial production
Electronic card : 20 years
Battery : > 20 years (France, DROM) / > 10 years (Africa, Middle East)
Warranty France and DROM : 10 years
Africa and the Middle East : 5 years
Other : consult us
Application Parking, residential, secondary road, pedestrian path, bus shelter, bike path ...
