Combi Top 4

Technical characteristics

Solar panel power 275 Wp (360° adjustable)


Battery technology Endurance +, Lithium Iron phosphate


Location In a box in aluminum foundry, behind the solar panel
Battery capacity 1 064 à 1 638 Wh


Operating temperature -20 °C à +65 °C
Light height 5 à 8 m
Power consumption 30 à 60 W


Luminous flux leaving 4 200 to 10 800 lumens

Light efficiency 140 lm/W (2200 K) - 160 lm/W (2700 K) - 165 lm/W (3 000 K) - 180 lm/W (4 000 K)
Color temperature 2 200 K / 2 700 K / 3 000 K / 4 000 K
Mast Cylindroconic galvanized steel powder coated, without door, calculated for all wind zones according to EN40 standard
Service life Luminaire : 100 000 h at 80 % of initial flux
Solar panel: 25 years at 80 % of initial production
Electronic card : 20 years
Battery : > 20 years (France, DROM) / > 10 years (Africa, Middle East)

Warranty France and DROM : 10 years
Africa and the Middle East : 5 years
Other : consult us
Application • Bus stops
• Residential areas
• Parks
• Pathways
• Bicycle paths
• Secondary roads

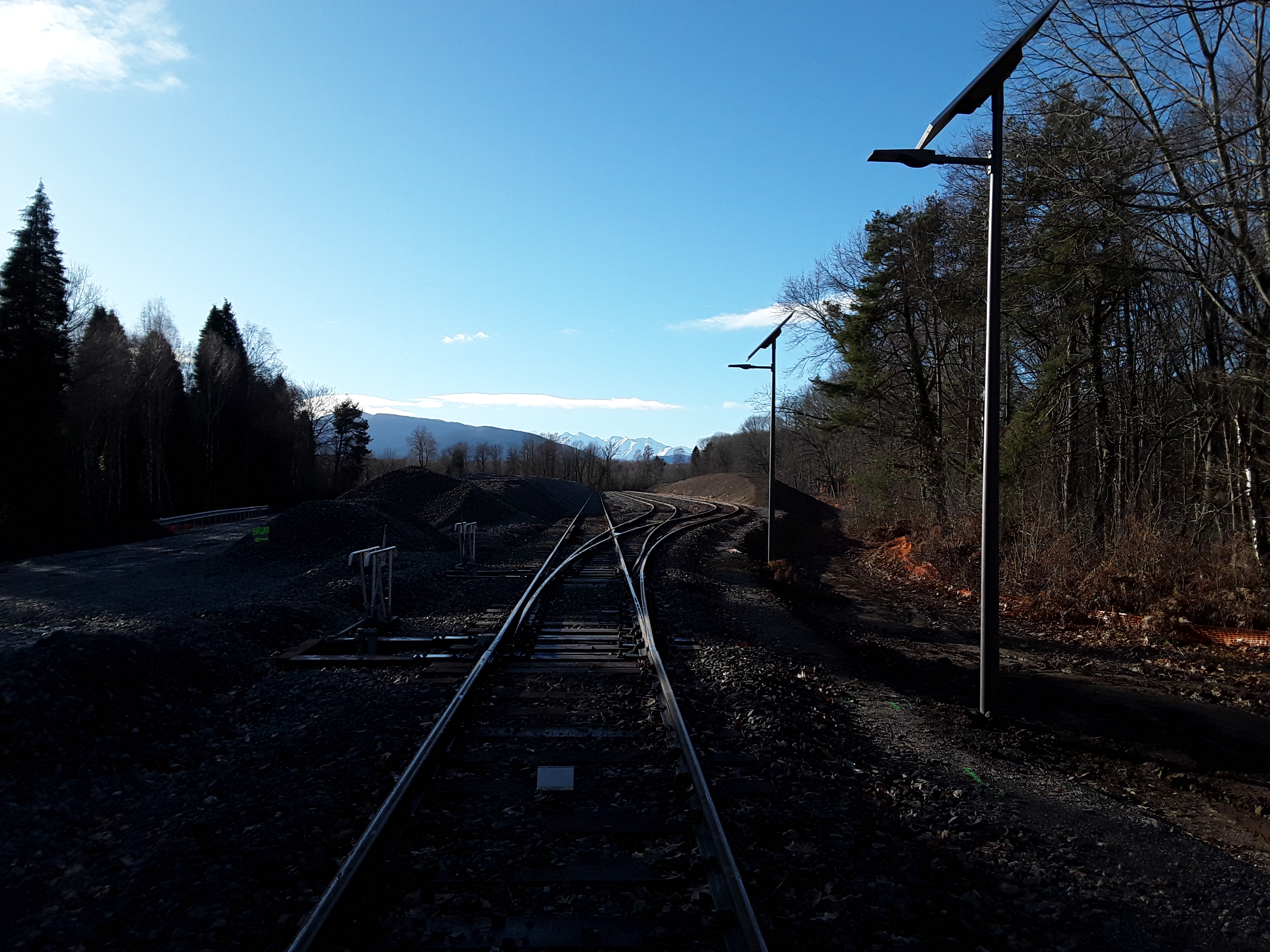

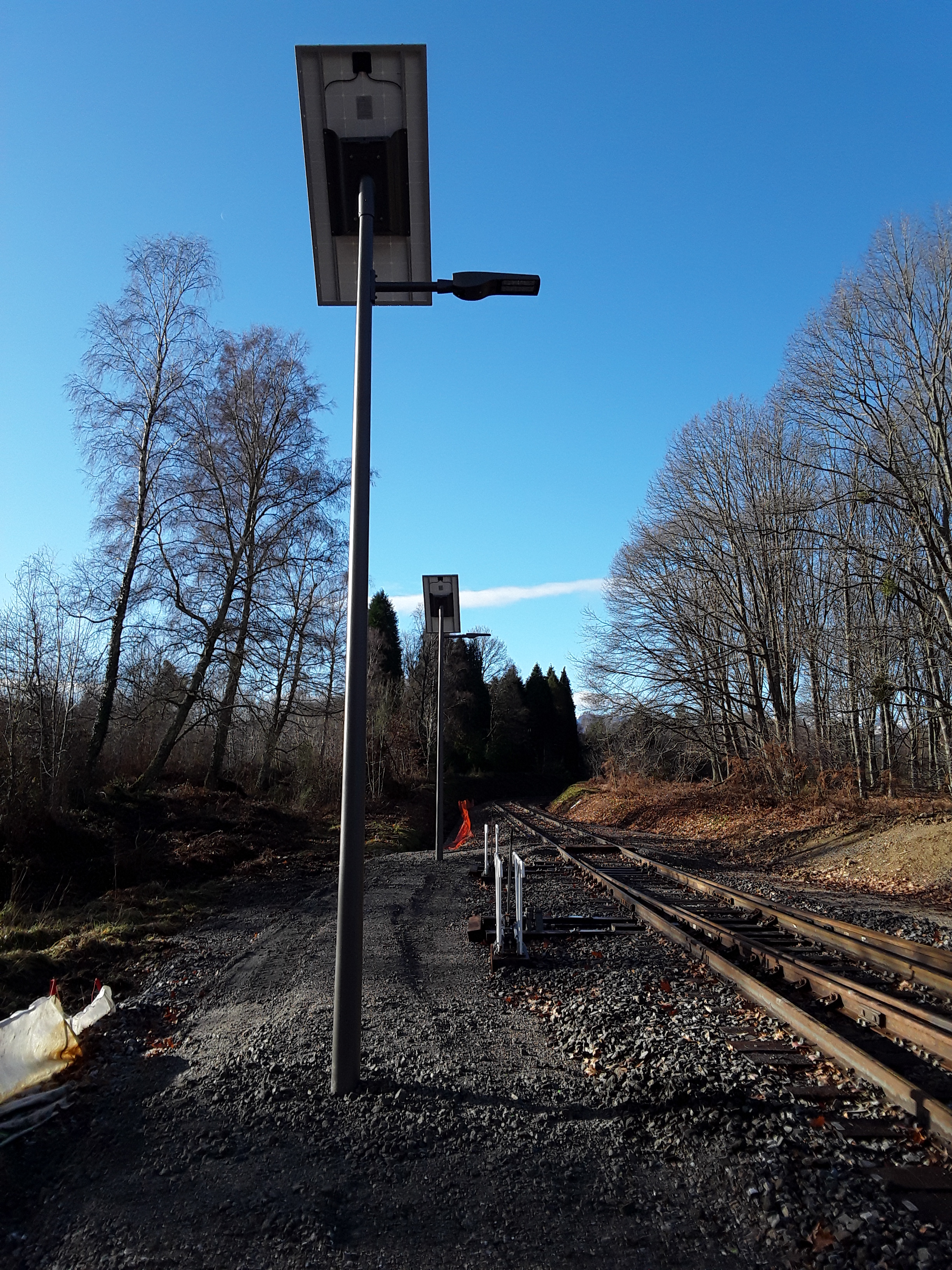

Achievements
