Residential area

Limiting civil engineering work, lowering the energy bill and avoiding common building costs are the main benefits of solar lighting for residential applications.

Residential lighting must provide a comfortable, safe and non-intrusive environment. It is necessary to be able to light all the night, but not necessarily with full power during the hottest hours of the night. And especially if there is nobody!

Average illumination level: > 7,5 lux, uniformity> 0,25. Except PMR zone (in this case, average 20 lux).

RECOMMENDED OPERATING MODE:

  • Le standard : allumage en pleine puissance les trois premières heures de la nuit puis passage en mode veille à 10 % et détection de présence le reste de la nu

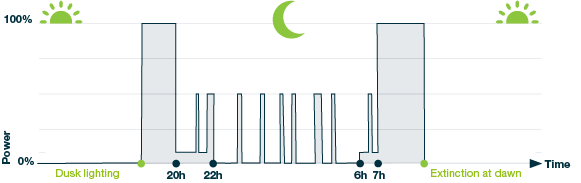

  • The standard: ignition at full power the first three hours of the night and then switch to standby mode at 10% and presence detection the rest of the night. With NOVMOOV option.
  • Most energy-efficient: 10% stand-by power up and presence detection all night long. NOVMOOV option.

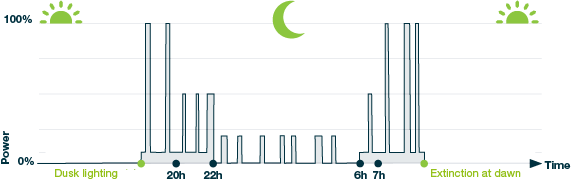

  • The most energy-intensive: full power the first three or four hours of the night and one or two hours in the morning associated with a sleep mode. Presence detection possible between the two periods of permanent lighting.

NOVMOOV system: a wireless communicating solution that allows one or more groups of street lights to be switched on simultaneously in full power

LIGHTING POWER:

The table below shows the required lighting power according to the objective of the level of illumination to be attained and according to the surface indicated.

It will remain to specify the operating time per night to validate the power of the solar panel and the capacity of the battery.



Products related to this type of project

Combi Top 1

  • Solar panel power: minimum 60 Wp (360° adjustable)
  • Light height: 3,5 to 6 m
  • Power consumption: 5 to 20 W
  • Luminous flux leaving: 700 to 3 600 lumens
View the product

Combi Top 2

  • Solar panel power: 150 Wp (360° adjustable)
  • Light height: 4 to 6 m
  • Power consumption: 10 to 40W
  • Luminous flux leaving: 1 400 to 7 200 lumens
View the product

Combi Top 3

  • Solar panel power: 175 Wp (360° adjustable)
  • Light height: 4 to 8 m
  • Power consumption: 20 to 40 W
  • Luminous flux leaving: 2 800 to 7 200 lumens
View the product

Combi Top 5/5+

  • Solar panel power: 330 Wp (360° adjustable)
  • Light height: 5 to 8 m
  • Power consumption: 30 to 60 W
  • Luminous flux leaving: 4 200 to 10 800 lumens
View the product

AKKOR 2.6

  • Solar panel power: 200 Wc
  • Light height: 6 m
  • Power consumption: < 25 W
  • Luminous flux leaving: 1 500 to 3 000 lumens
View the product

AKKOR TEKK 2.6

  • Solar panel power: 200 Wc
  • Light height: 6 m
  • Power consumption: < 25 W (16 LED) / ⩾ 25 W (32 LED)
  • Luminous flux leaving: 1 500 to 5 250 lumens
View the product
